HVAC SYSTEMS
ENGINEERED FOR ENDURANCE, DESIGNED FOR COMFORT
A well-controlled climate inside the ambulance module isn’t just a luxury; it’s a necessity. Maintaining an optimal temperature improves patient comfort during transport and creates a better working environment for EMS professionals in critical moments. At Braun, we’ve engineered tough, dependable HVAC solutions to meet the varied demands of your region. With four packages tailored to different climates, we’ve taken the guesswork out of selecting the right system for you. Each package is reinforced by our industry-leading standard insulation, with the option to enhance performance even further with our advanced thermal barrier coating. Whatever the environment throws at you, Braun’s HVAC systems are built to deliver reliable performance
HVAC SYSTEMS CONFIGURATION GUIDE
Every climate has an ideal A/C system configuration; find the best starting point for your region.

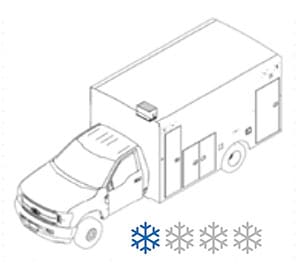

BASIC PACKAGE

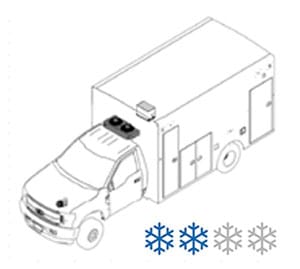

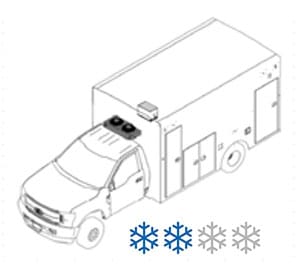

ADVANCED PACKAGE

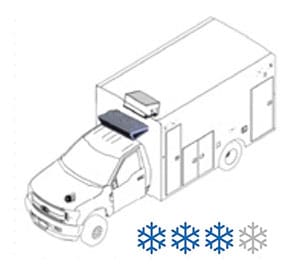

PREMIUM PACKAGE

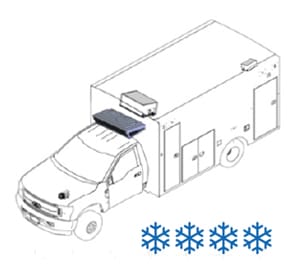

HIGH PERFORMANCE PACKAGE

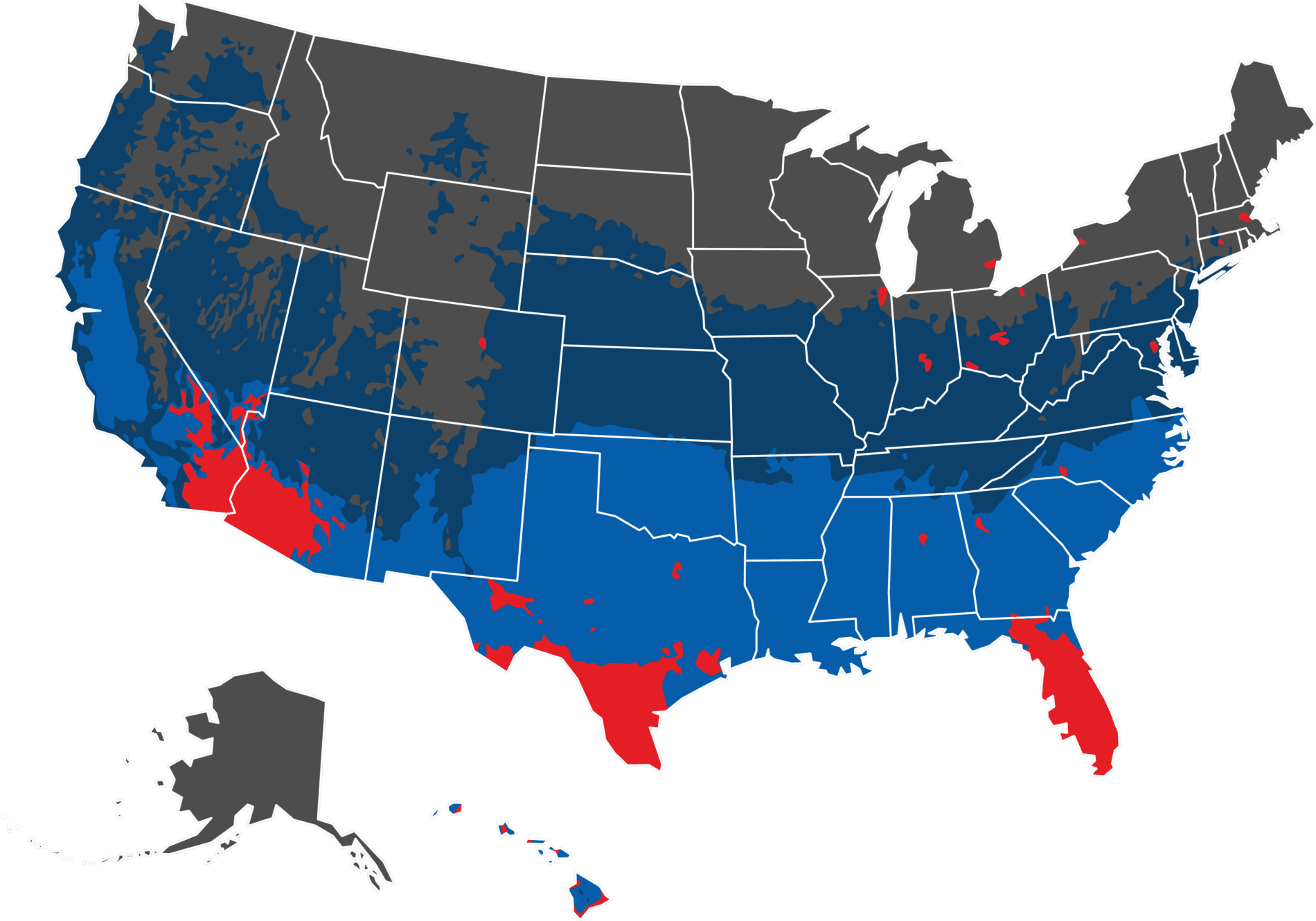

*The map above will help identify the best HVAC system for each region. This map is based on average summer temperatures and heat index. It does not take into account certain factors that can impact climate, including, but not limited to, elevation and microclimates. This map should be viewed not for its accuracy but for the trend it presents. It is to be used as a tool by sales representatives in guiding their customers to select the best-suited HVAC system for their needs.
OUR PACKAGES ARE DESIGNED TO HELP YOU
CUSTOMIZE YOUR AMBULANCE SUIT YOUR REGIONAL CLIMATE
OUR PACKAGES ARE DESIGNED TO HELP YOU CUSTOMIZE YOUR AMBULANCE SUIT YOUR REGIONAL CLIMATE
*Use the arrow navigation to scroll through the table to view all package options.
*Use your finger and left swipe to scroll through the table to view all package options.
 Basic PackageTie-in to OEM + small footprint evaporator |  Advanced PackageTie-in to OEM + auxiliary condenser + small footprint evaporator |  Advanced PackageIndependent compressor + auxiliary condenser + small footprint evaporator |  Premium PackageIndependent compressor + auxiliary condenser + large footprint evaporator |  High Performance PackageIndependent compressor + auxiliary condenser + large footprint evaporator + auxiliary evaporator (12V/110V shoreline A/C only) | |
|---|---|---|---|---|---|
| Evaporator | 30,000+ BTU | 30,000+ BTU | 30,000+ BTU | 30,000+ BTU | 1 x 30,000+ BTU 1 x 12,000+ BTU |
| Front Wall Condensor | NO | 24,000+ BTU | 45,000+ BTU | 45,000+ BTU | 12V: 45,000+ BTU 110V: 24,000+ BTU |
| Tied to OEM A/C Compressor | YES | YES | NO | NO | NO |
| Tied to Independent Compressor | NO | NO | YES | YES | YES |
| Airflow | Direct blow | Direct blow | Direct blow | Direct blow | Direct blow |
| 12V Heat | Tied to OEM Coolant System | Tied to OEM Coolant System | Tied to OEM Coolant System | Tied to OEM Coolant System | Tied to OEM Coolant System |
| Options | - - | - - | - Aux evaporator option for 110V shoreline A/C option - 110V electric heater option | - 110V shoreline A/C option - 110V electric heater option | - 110V electric heater option |
SHORELINE HVAC
This option allows the air conditioning and heating to function when the ambulance is stationed. By plugging the shoreline into a 20—or 30-amp outlet, the module is always at the right temperature. Shoreline HVAC units are rated at 12,000 Btu/h cool and 9,000 Btu/h heat.
| Express | Express Plus | Liberty | Chief XL | Super Chief | |
|---|---|---|---|---|---|
| Option Availability by Model | N/A |
Precision-Engineered Insulation
Enhancing A/C Efficiency by Deflecting External Temperatures and Preserving Internal Climate Stability
Enhancing A/C Efficiency by Deflecting External Temperatures and Preserving Internal Climate Stability
Crafted with meticulous attention to detail, our insulation amplifies the performance of the A/C packages, ensuring reliable temperature regulation in every environment.
| STANDARD | THERMAL BARRIER COATING (Optional) |
|---|---|
| Polyurethane Spray Foam for thermal and acoustical insulation applied to the ceiling, walls, exterior doors, and underside of the vehicle | Temp-Coat® liquid acrylic latex ceramic insulation applied to interior of the ambulance module roof to reduce interior temperatures generated by radiant heat from the sun |
Do you still have questions about what HVAC System package and options are right for your region and service? Contact your local dealer today; they will provide the best recommendation for your needs.
